USB Ultimate individual measurement data sheets?

[Lairpost]

Hi Daniel, if I provide my Ultimate serial number can you provide the specific measurement data for my cable?

@Daniel

[Daniel (Intona)]

Sure, I will send you the measurement results by PM.

[Marcel]

Hi Daniel, if I provide my serial number, can you give me specific measurement data for my REFERENCE USB cable?

[Daniel (Intona)]

Of course! We have all the individual characterization data saved in a database.

[devilmatt]

hi Daniel,
if i send the serial number, can you share the rough date for production (year and month)? and also the measurement data for my REFERENCE USB cable (1.5m)?
S/N : 70300A

[Daniel (Intona)]

70300A: date of production was 2022-01

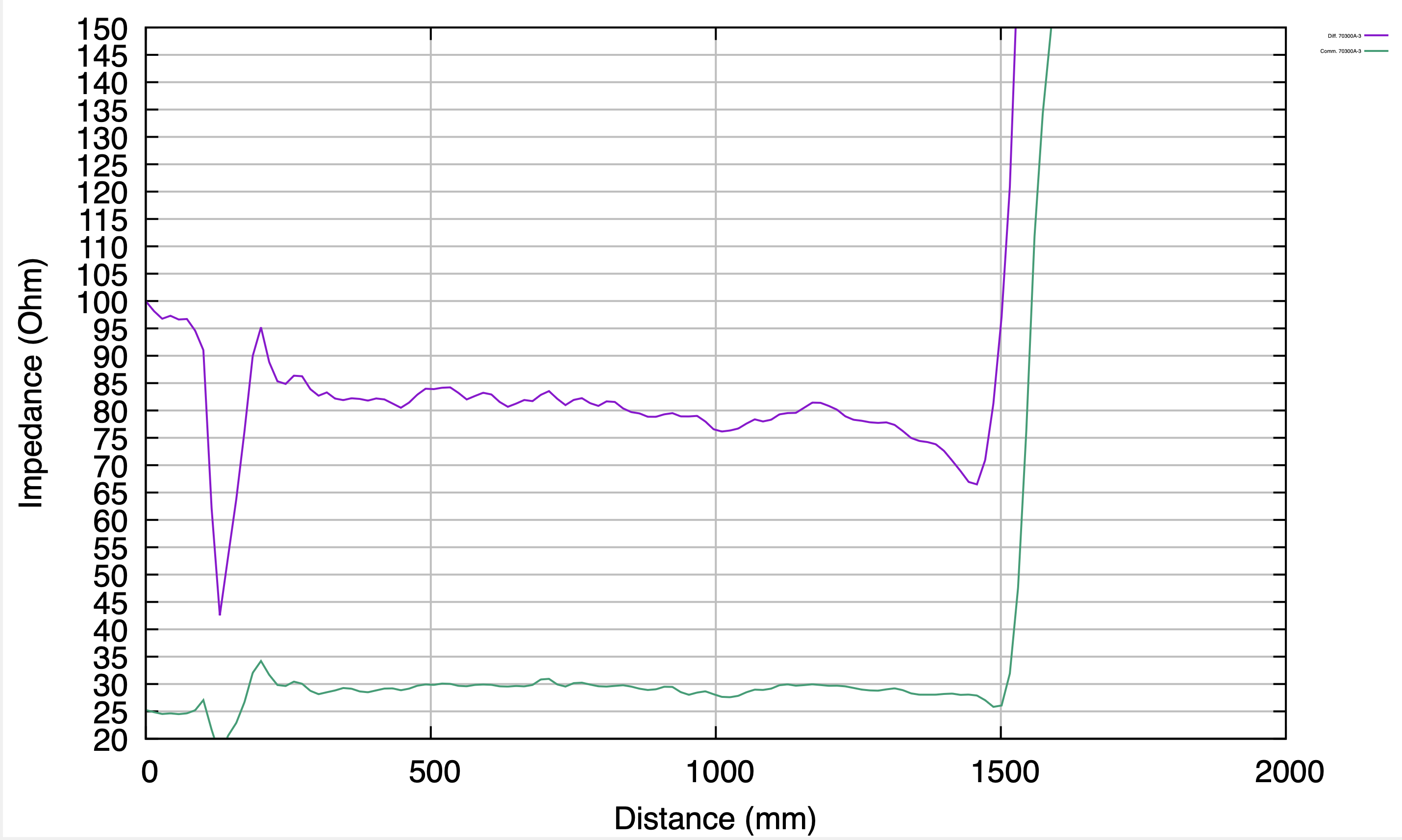

Here are the original measurements of both differential mode and common mode impedance. The dip down to 45 Ohms at 100 mm is the connector of the test jig whereas the following spike at 95 Ohms is the connector of the cables USB-A side.
